Threaded ball valves play a crucial role in fluid control systems1. They provide reliable shut-off and flow regulation2 in various industries, ensuring efficiency and safety.
Threaded ball valves are compact, durable, and easy to install, making them ideal for a wide range of applications. These valves use a rotating ball to control fluid flow, ensuring precise and leak-free operation.
Understanding how these valves work, their types, and installation guidelines can help industries optimize their fluid control systems.
Introduction: What Are Threaded Ball Valves?
Threaded ball valves are quarter-turn valves designed for on/off flow control. They use a perforated, pivoting ball to regulate the passage of liquids or gases.
These valves are commonly used in industrial, commercial, and residential plumbing systems due to their durability and ease of installation. Their threaded connections allow for secure attachment without welding or flanges.
Key Characteristics of Threaded Ball Valves
- Compact Design: Saves space in piping systems.
- Quarter-Turn Operation: Allows quick opening and closing.
- Leak-Tight Sealing: Ensures minimal fluid loss.
- Versatile Materials: Available in stainless steel, brass, and other alloys.
Detailed Definition and Classification
Threaded ball valves come in various types, each suited for specific applications.

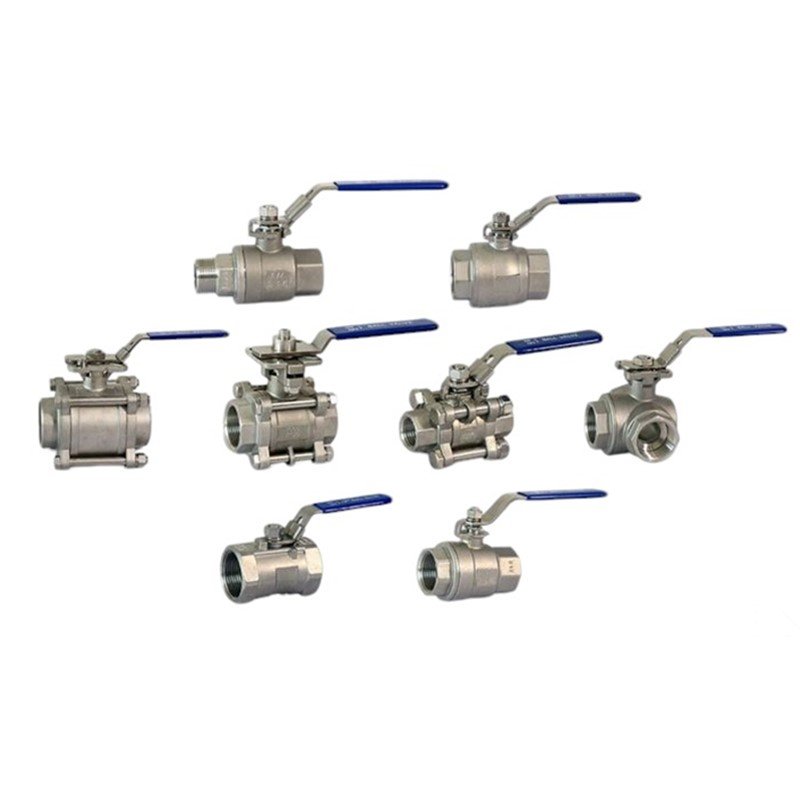

Types of Threaded Ball Valves
Two-Way Threaded Ball Valves
These are the most common type, featuring an inlet and an outlet for straightforward flow control.
Three-Way Threaded Ball Valves
Designed with three ports, these valves allow for mixing or diverting flow between different pipelines.
Four-Way Threaded Ball Valves
Used for complex flow control, these valves offer multiple flow configurations.
Full Port vs. Standard Port Ball Valves
| Type | Flow Capacity | Pressure Drop | Best Application |
|---|---|---|---|
| Full Port | Maximum | Minimal | High-flow systems |
| Standard Port | Restricted | Moderate | General applications |
Floating vs. Trunnion Mounted Ball Valves
| Type | Support Mechanism | Pressure Handling | Application |
|---|---|---|---|
| Floating | Free-moving ball | Low to medium | General piping systems |
| Trunnion Mounted | Fixed ball support | High pressure | Industrial and high-pressure systems |
In-Depth Working Principles

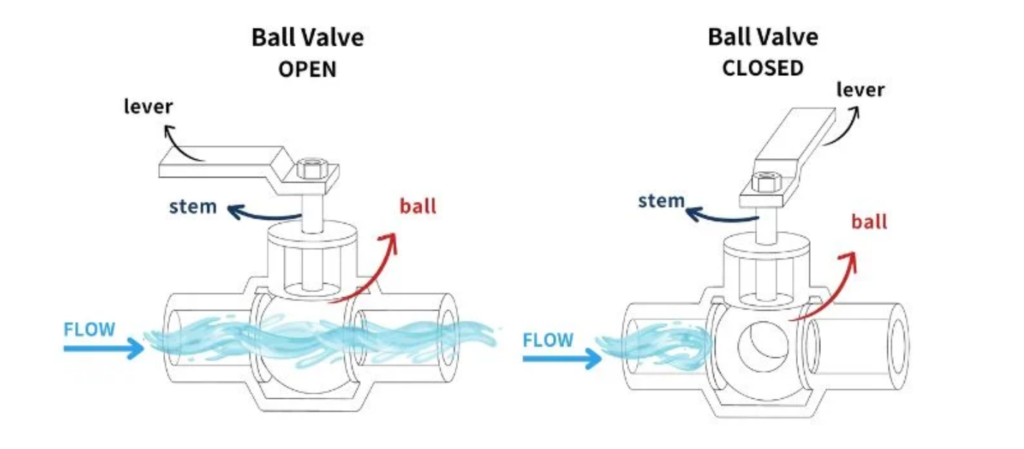

Threaded ball valves operate by rotating a ball inside the valve body. This ball has a bore through which fluid passes.
When the ball aligns with the pipe, the valve is open. When rotated 90 degrees, the flow stops.
Flow Control Mechanisms
- Full Open: Maximum flow with minimal resistance.
- Partial Open: Adjusting the position allows for throttling.
- Closed: Complete shut-off to prevent leakage.
Sealing Techniques
- PTFE (Teflon) Seals: Offer chemical resistance and durability.
- Elastomer Seals: Provide flexibility for high-pressure applications.
Comprehensive Features and Advantages
Sealing Performance
Different seal materials enhance performance based on fluid type and pressure.
Design Considerations
A valve’s design influences its flow rate, pressure drop, and durability.

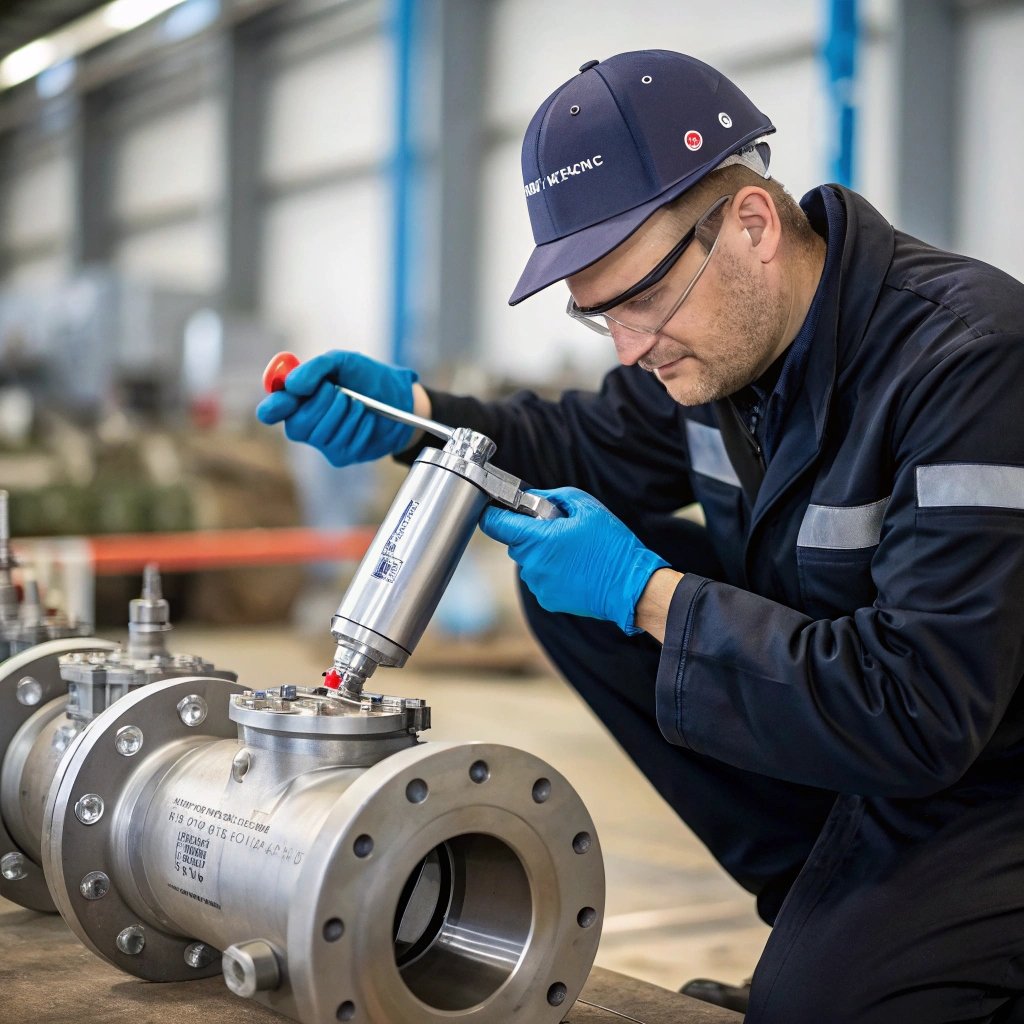

Operation and Maintenance
- Regular lubrication ensures smooth operation.
- Periodic inspections help detect wear and tear early.

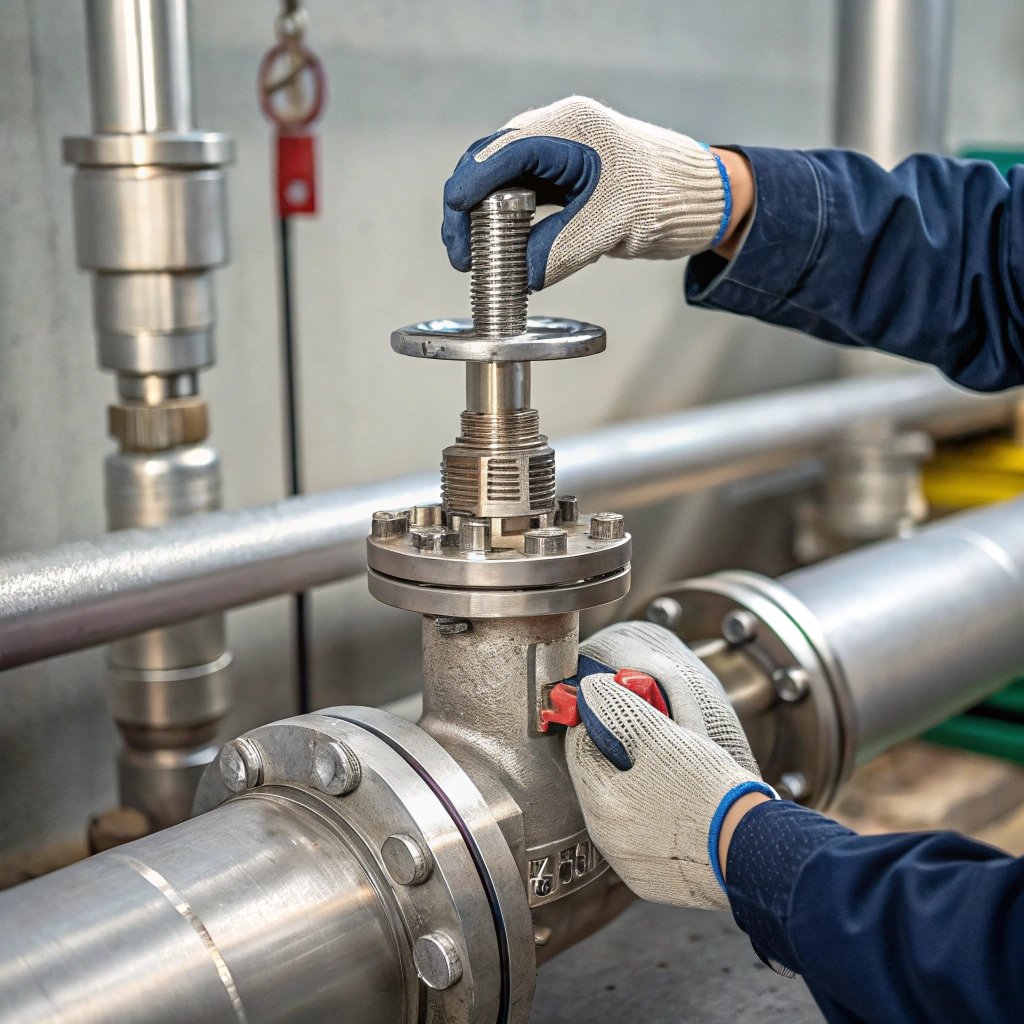

Installation Guidelines
Preparation
- Check for damage or defects before installation.
- Ensure compatibility with the pipeline system.
Installation Steps
- Apply thread sealant to prevent leaks.
- Align the valve with the pipeline.
- Tighten connections according to specifications.
Post-Installation Testing
- Conduct pressure tests to verify performance.
- Check for leaks or operational stiffness.
Common Issues and Troubleshooting
Leakage
- Cause: Loose fittings, worn-out seals.
- Solution: Tighten connections, replace seals.
Operational Failures
- Cause: Debris blockage, corrosion.
- Solution: Clean the valve, apply protective coatings.
Applications Across Industries
![Industry Applications]("https://placehold.co/600x400.jpg")
Industry-Specific Uses
| Industry | Application |
|---|---|
| Oil & Gas | Pipeline flow control |
| Water Treatment | Regulating clean and wastewater |
| HVAC | Temperature and pressure control |
| Chemical Processing | Handling corrosive fluids |
Case Studies
A chemical plant improved fluid control efficiency by 30% by switching to stainless steel threaded ball valves.
Technological Advancements and Trends

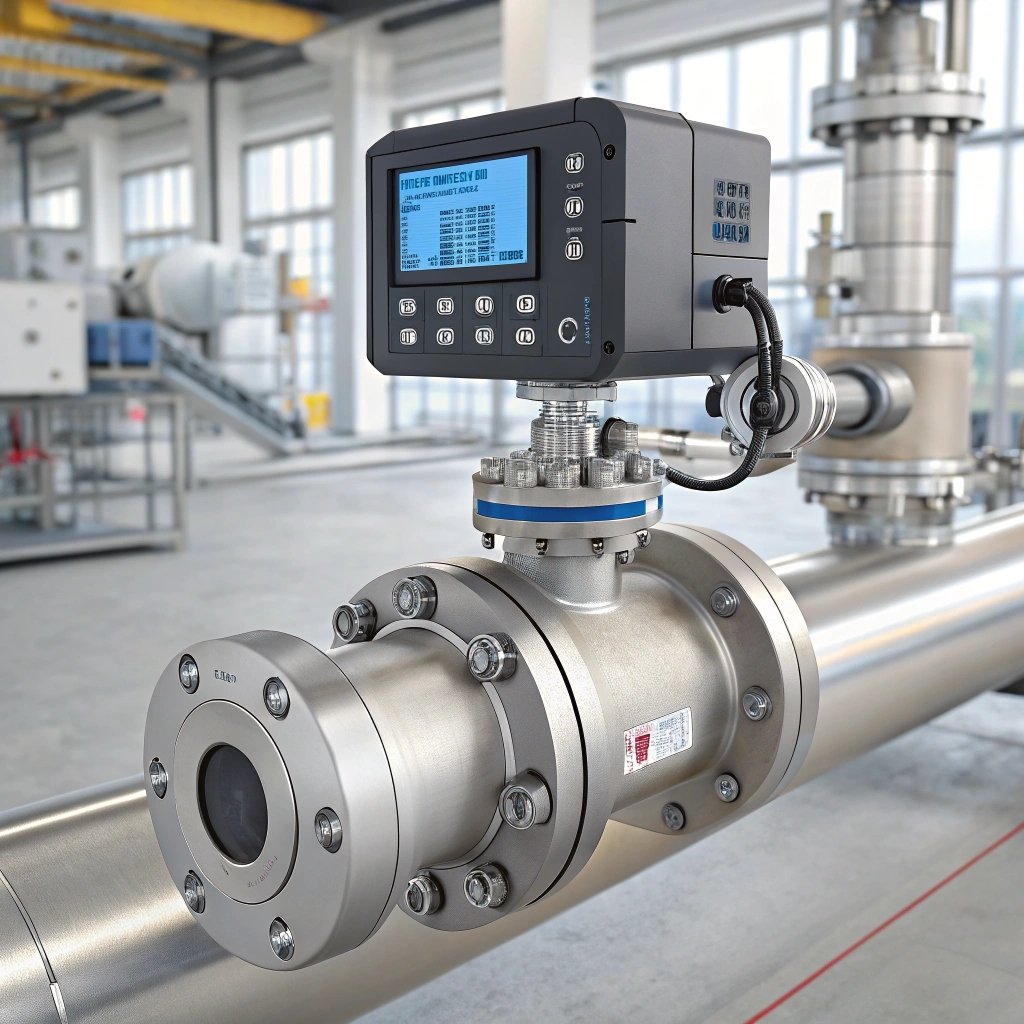

Smart Valves
- Sensors for real-time monitoring.
- Remote operation via automation systems.
Material Innovations
- PTFE coatings enhance corrosion resistance.
- New alloys improve strength and longevity.
Conclusion
Threaded ball valves are essential in fluid control, offering durability, efficiency, and ease of use. Understanding their types, working principles, and maintenance ensures optimal performance in any system.
FAQs
-
What are the key differences between full port and standard port thread ball valves?
- Full port ball valves have a larger bore, allowing for minimal flow restriction, while standard port ball valves have a smaller opening, which may slightly reduce flow but are often more compact and cost-effective.
-
How do I choose the right thread ball valve for my application?
- Consider factors like pressure rating, material compatibility with the fluid, temperature range, and the specific application requirements (e.g., industrial, plumbing, or gas systems).
-
How can I prevent leakage in a thread ball valve?
- Ensure proper installation with correct torque on threaded connections, use appropriate sealants or Teflon tape, and regularly inspect the valve for wear and tear.
-
What materials are commonly used for thread ball valves, and how do they impact performance?
- Common materials include stainless steel (corrosion resistance), brass (cost-effective and durable for general use), and PVC (lightweight and chemical-resistant for certain applications). The material choice affects durability, temperature tolerance, and fluid compatibility.
-
Can a thread ball valve be used for throttling applications?
- While ball valves can be used for throttling, they are primarily designed for on/off control. Frequent throttling can cause wear on the ball and seats, so globe or butterfly valves are often preferred for precise flow regulation.
