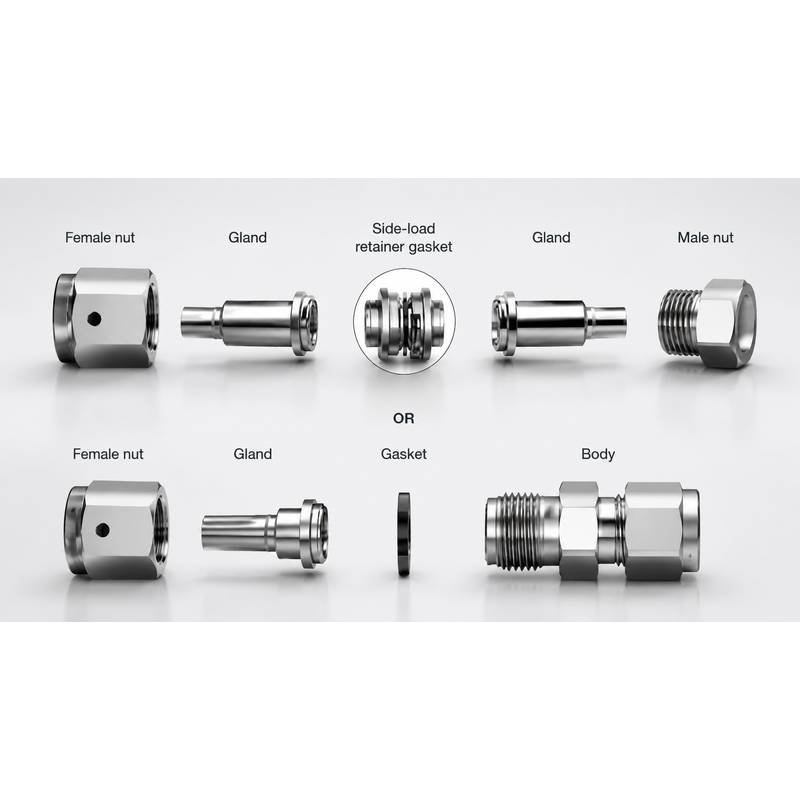

Metal gasket face seal fittings (VCR type) are ultra high purity connectors designed for leak-tight sealing in vacuum and high-purity gas systems.
They utilize a precision metal-to-metal sealing mechanism with a replaceable soft metal gasket, ensuring reliable performance under extreme pressure, temperature, and vacuum conditions.
These fittings are widely used in semiconductor manufacturing, gas distribution systems, vacuum chambers, analytical instruments, and hydrogen systems where contamination control is critical.
Compared to elastomer sealing systems, metal gasket face seal fittings provide superior cleanliness, lower outgassing, and higher long-term reliability in ultra high purity environments.
| Sealing Type | Metal-to-metal gasket compression |
| Application Level | Ultra high purity (UHP) / Vacuum systems |
| Key Advantage | Zero leakage, low outgassing, high reliability |
| Industries | Semiconductor / Vacuum / Gas distribution / Hydrogen systems |
| Compatibility | Swagelok® VCR type systems |
| Supply Mode | OEM / Bulk / Distributor supply |
| Manufacturing | Cleanroom compatible production |

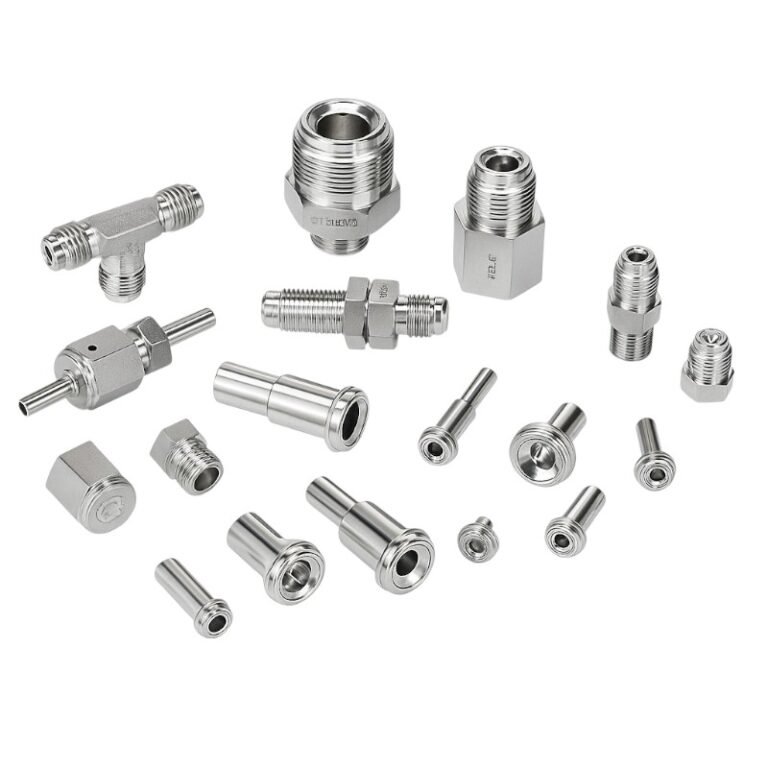

We provide a full portfolio of ultra high purity metal gasket face seal (VCR type) fittings designed for semiconductor, vacuum, and high-purity gas distribution systems.

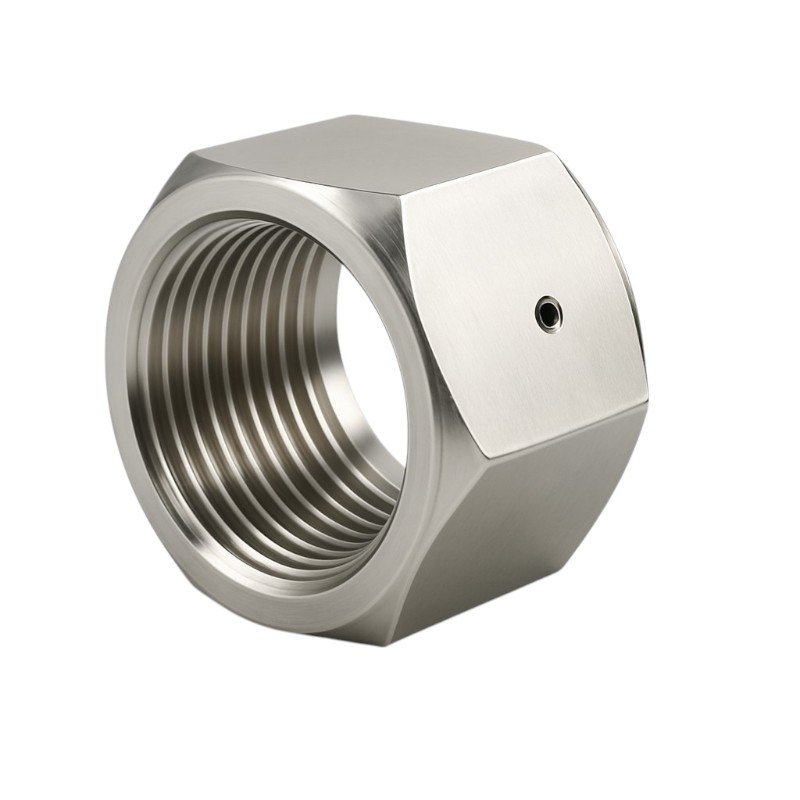

Ultra high purity female nut for VCR metal gasket face seal systems in vacuum and gas applications.
Connection: Female thread | Size: 1/8"–1" | Material: SS316L / VAR / C-276 / C-22

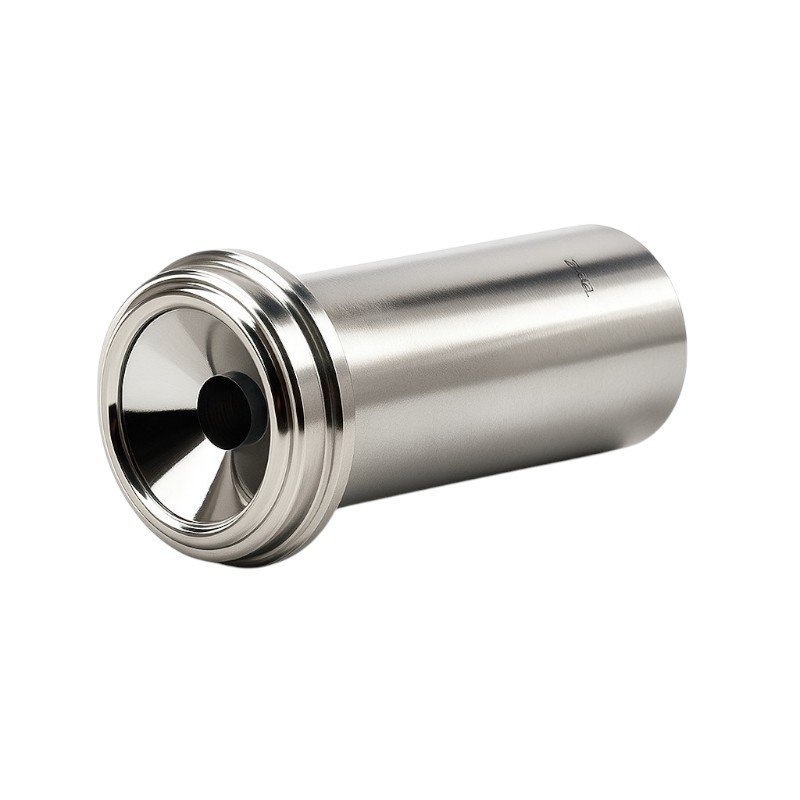

Precision gland for metal gasket face seal assemblies used in ultra high purity vacuum systems.
Connection: Face seal | Size: 1/8"–1" | Material: 316L / VAR / C-276 / C-22

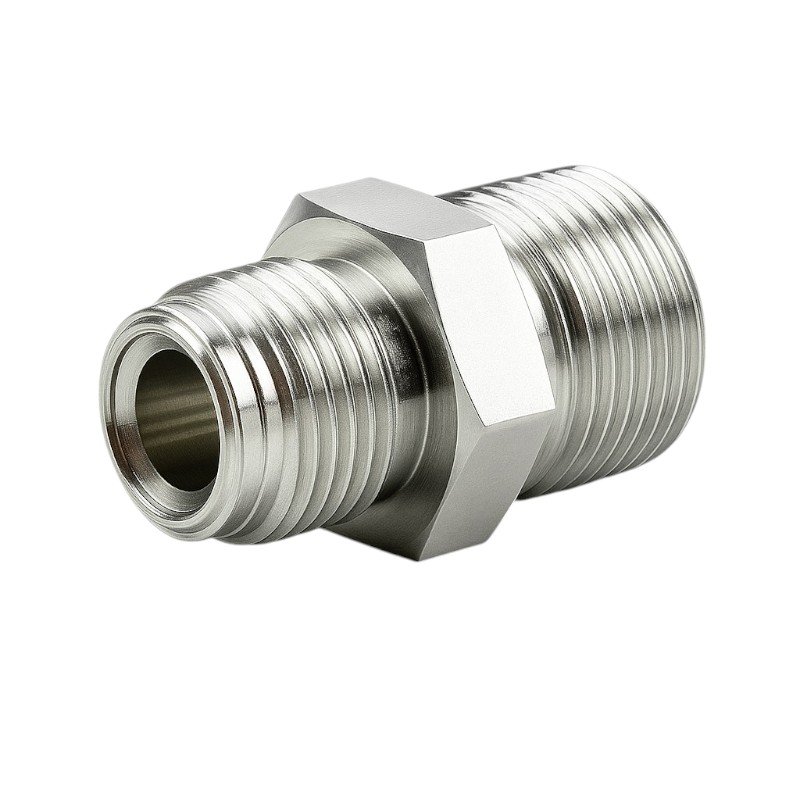

Transition fitting connecting NPT threaded systems to VCR metal gasket face seal systems.
Connection: NPT to Face Seal | Size: 1/4"–1" | Material: 316L / VAR / C-276 / C-22

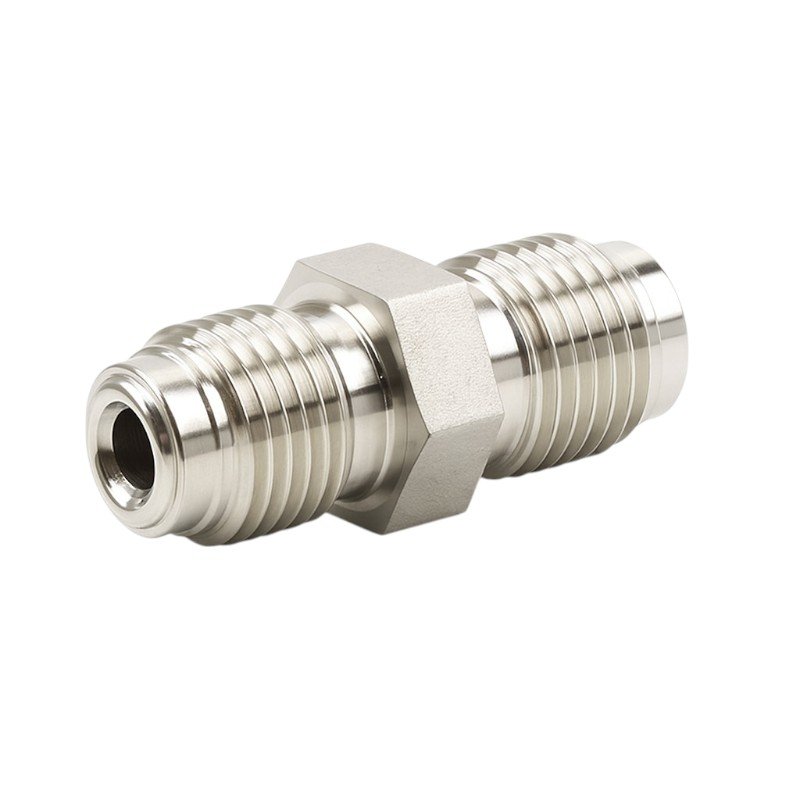

High integrity union fitting for leak-tight metal gasket sealing in vacuum and gas systems.
Connection: Face Seal | Size: 1/4"–1" | Material: 316L / VAR / C-276 / C-22

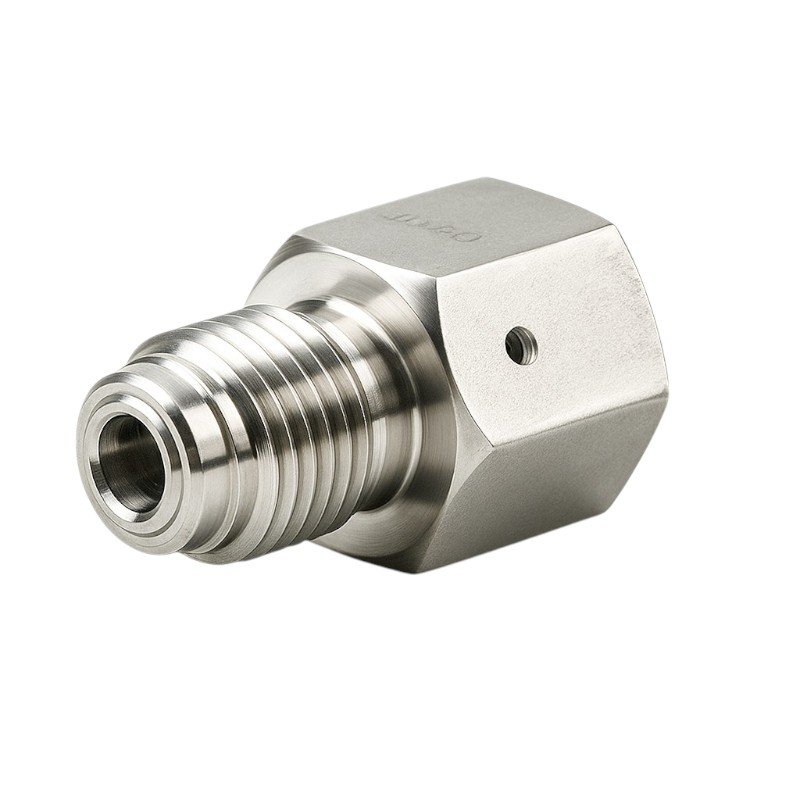

High integrity nut for leak-tight metal gasket sealing in vacuum and gas systems.
Connection: Face Seal to Male Thread | Size: 1/8"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / Hastelloy C-22

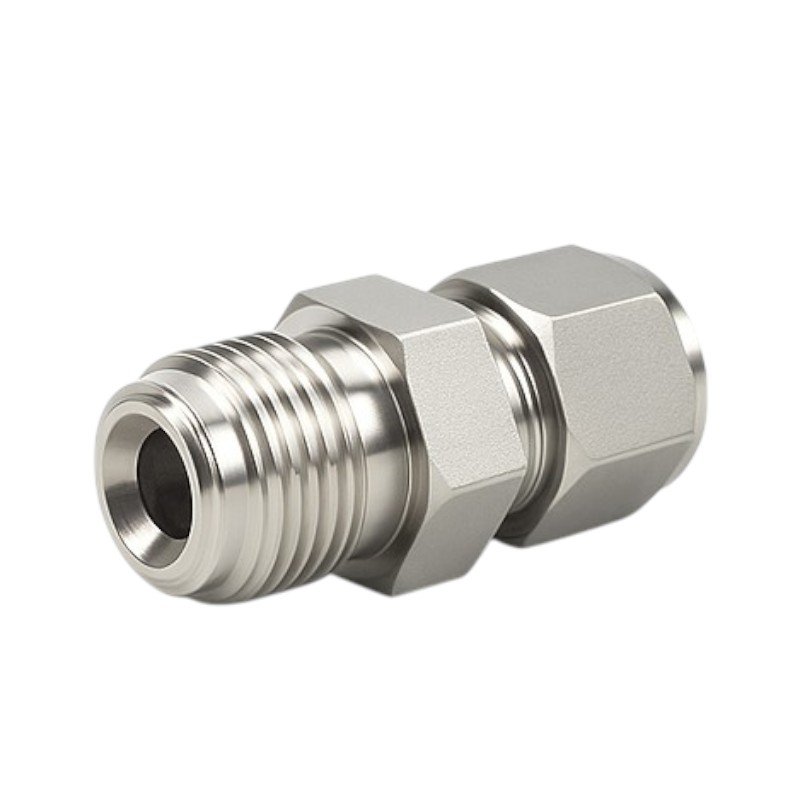

High purity metal gasket face seal fitting for vacuum and gas systems.
Connection: Face Seal to Tube | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / Hastelloy C-22

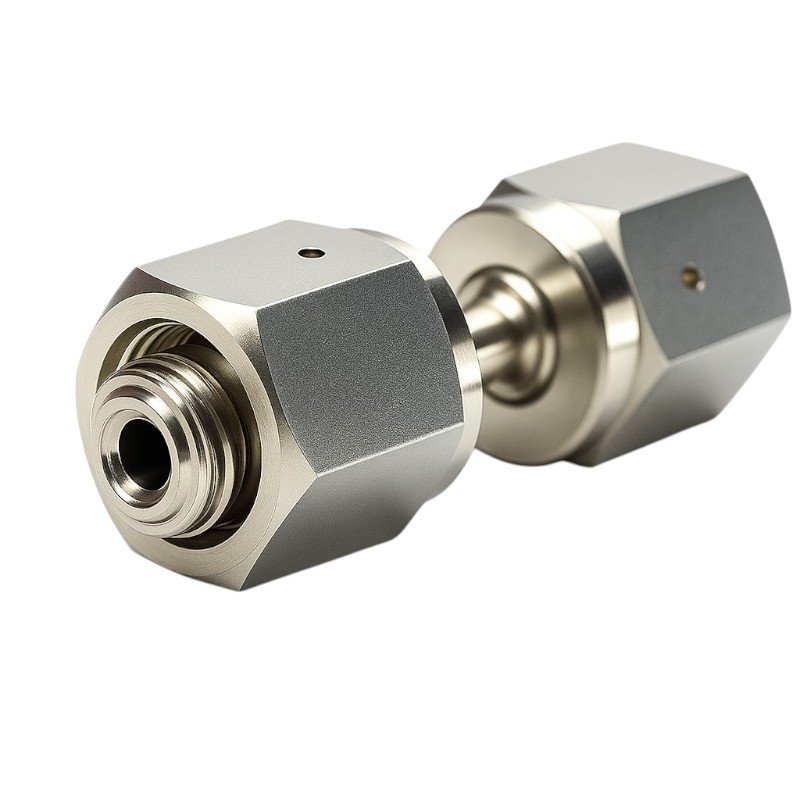

High purity union fitting for leak-tight metal gasket face seal connections in vacuum and gas systems.
Connection: Face Seal to Face Seal | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / C-22

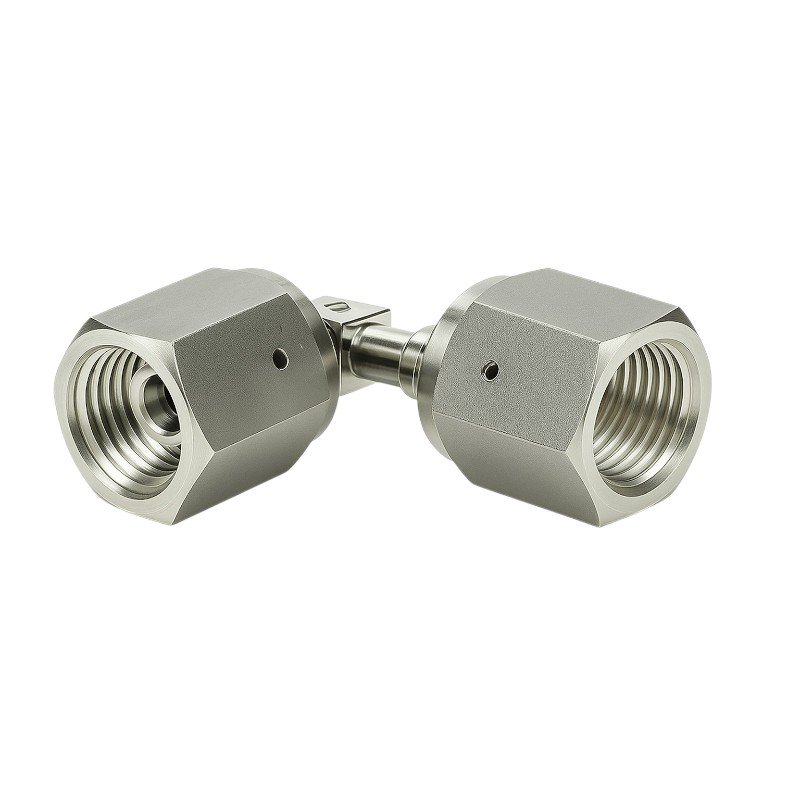

Directional union fitting for high purity vacuum and gas system piping layouts.
Connection: Face Seal to Face Seal | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / Hastelloy C-22

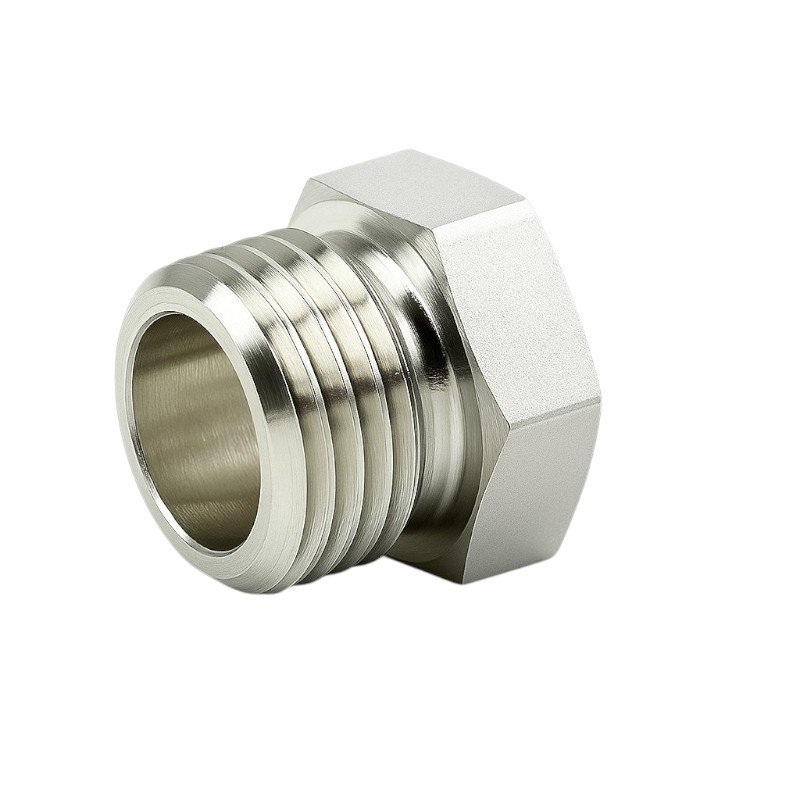

High purity reducer for VCR metal gasket face seal system transition.
Connection: Face Seal | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / C-22

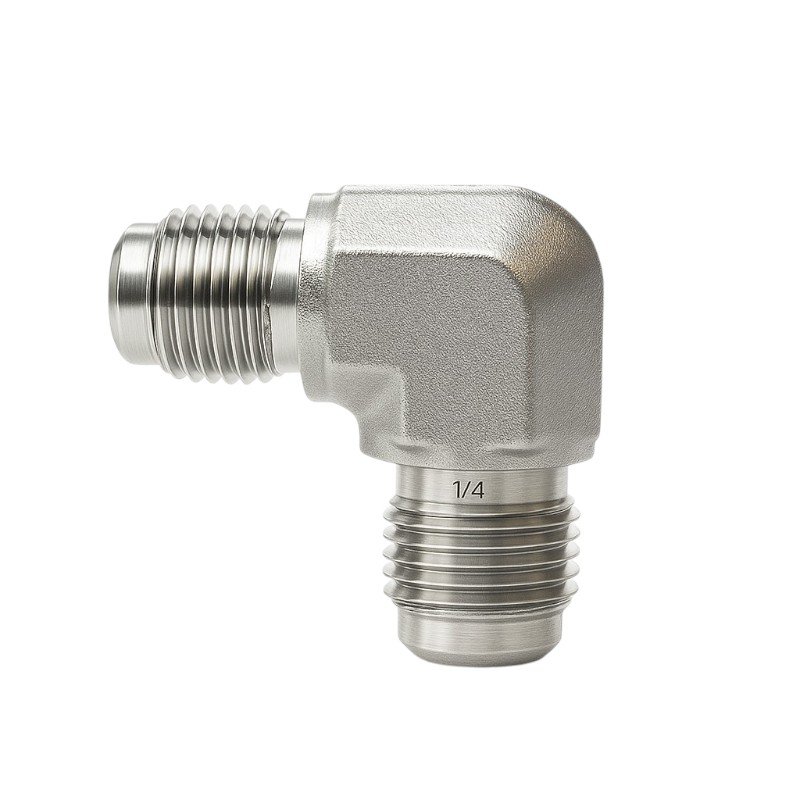

High purity elbow fitting for directional flow in vacuum and gas distribution systems.
Connection: Face Seal to Face Seal | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / C-22

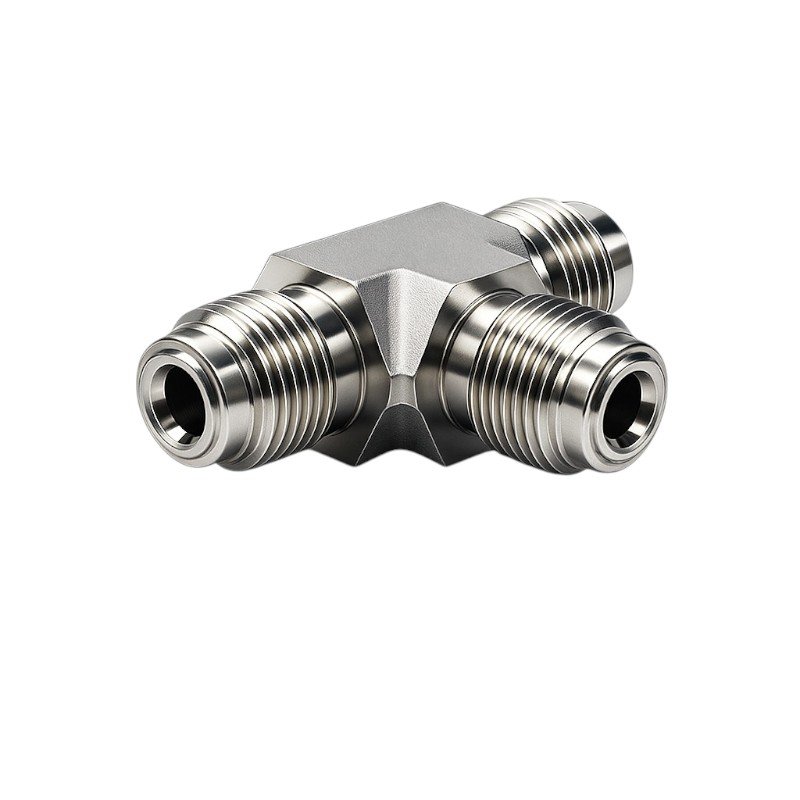

Three-way distribution fitting for ultra high purity gas and vacuum system networks.
Connection: Face Seal to Face Seal | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / C-22

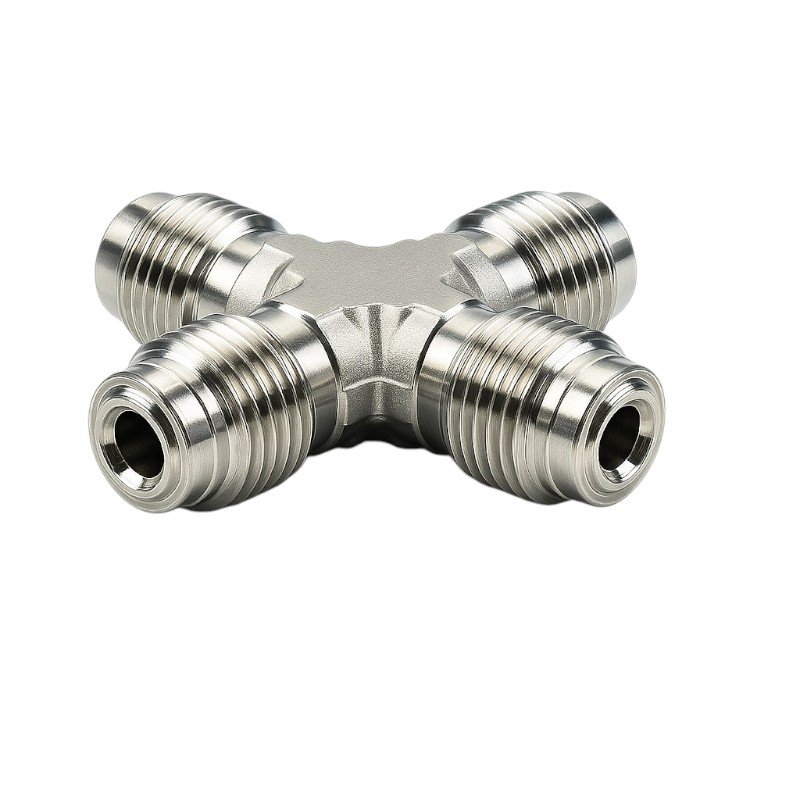

Cross distribution fitting for complex vacuum and high purity gas system layouts.
Connection: Face Seal | Size: 1/4"–1" | Material: SS316L / 316L VAR / Hastelloy C-276 / C-22
| Beyond Fluid Basic Ordering No. | Swagelok Ordering No. |
|---|---|
| -MN-FT2 | SS-2-VCR-4 |
| -MN-FT4 | SS-4-VCR-4 |
| -MN-FT8 | SS-8-VCR-4 |
| -MN-FT10 | SS-10-VCR-4 |
| -MN-FT12 | SS-12-VCR-4 |
| -MN-FT16 | SS-16-VCR-4 |
Technical specifications of VCR metal gasket face seal fittings for ultra high purity and vacuum systems.
| Sealing Type | Metal-to-metal gasket compression (VCR face seal) |
| Application Level | Ultra High Purity (UHP) / Vacuum systems |
| Key Performance | Zero leakage / Low outgassing / High reliability |
| Pressure Rating | Up to 5,000 PSI / 10,000 PSI burst |
| Temperature Range | -196°C to 538°C |
| Material Options | SS316L / 316L VAR / Hastelloy C-276 / C-22 |
| Size Range | 1/8″ – 1″ |
| Surface Finish | BA / EP (Electropolished) |
| Quality Testing | Helium leak tested (each fitting) |
| Supply Mode | OEM / Bulk / Distributor supply |
| Compatibility | Swagelok® VCR type systems |

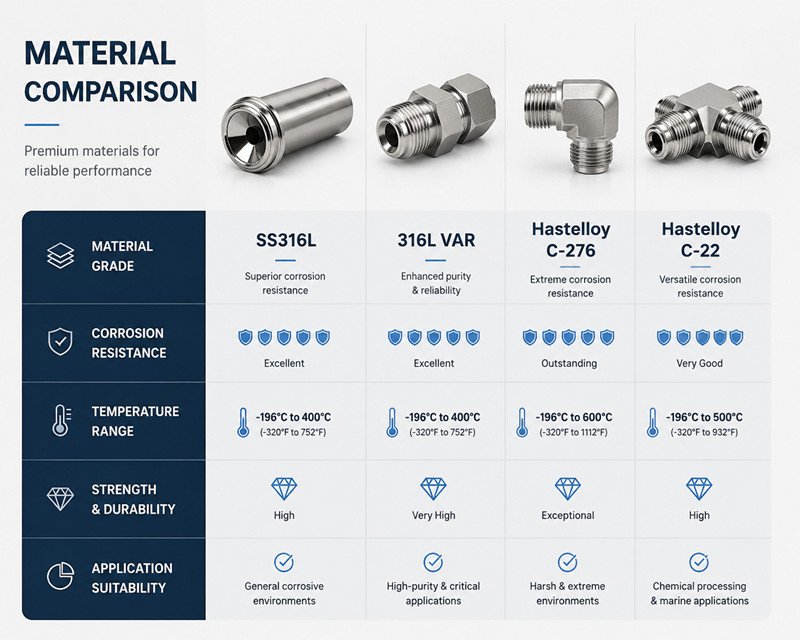

| SS316L | Standard ultra high purity stainless steel with excellent corrosion resistance and mechanical strength. |
| 316L VAR | Vacuum Arc Remelted grade with higher purity, reduced inclusions, and improved reliability for critical vacuum systems. |
| Hastelloy C-276 | High corrosion resistance alloy suitable for aggressive chemical and gas environments. |
| Hastelloy C-22 | Enhanced corrosion resistance for semiconductor and advanced chemical processing applications. |

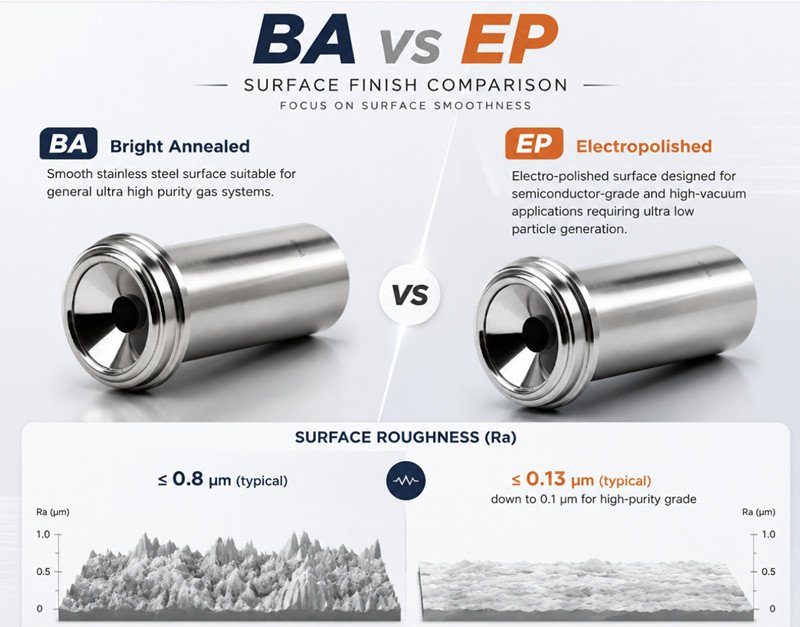

| BA (Bright Annealed) |
Smooth stainless steel surface suitable for general ultra high purity gas systems with controlled contamination levels. Surface Roughness (Ra): ≤ 0.8 μm (typical) |
| EP (Electropolished) |
Electro-polished surface with significantly reduced roughness (Ra), designed for semiconductor-grade and high-vacuum applications requiring ultra low particle generation. Surface Roughness (Ra): ≤ 0.13 μm (typical), down to 0.1 μm for high-purity grade |

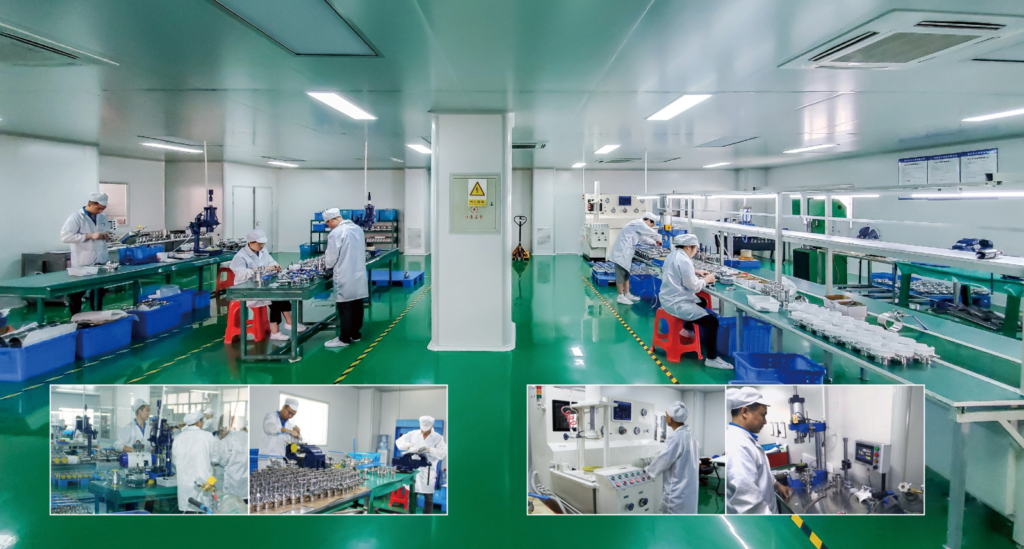

| Cleanroom Manufacturing | Production in controlled cleanroom environments to minimize particle contamination and ensure ultra high purity standards. |
| Helium Leak Testing | Each fitting is individually tested to ensure zero-leak performance in vacuum and gas systems. |
| Application Suitability | Suitable for semiconductor, vacuum, analytical, and high purity gas distribution systems. |
Used in wafer fabrication equipment, process gas delivery systems, and ultra high purity piping networks requiring strict contamination control.

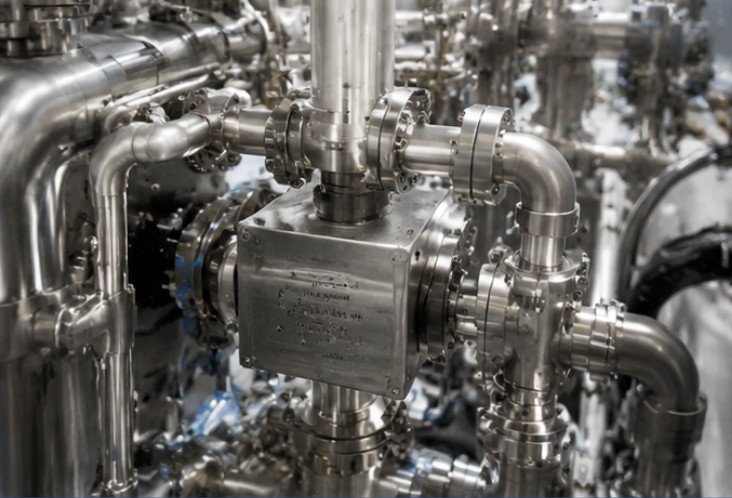

Applied in high vacuum chambers, UHV research systems, and analytical instruments where low outgassing and high reliability are essential.

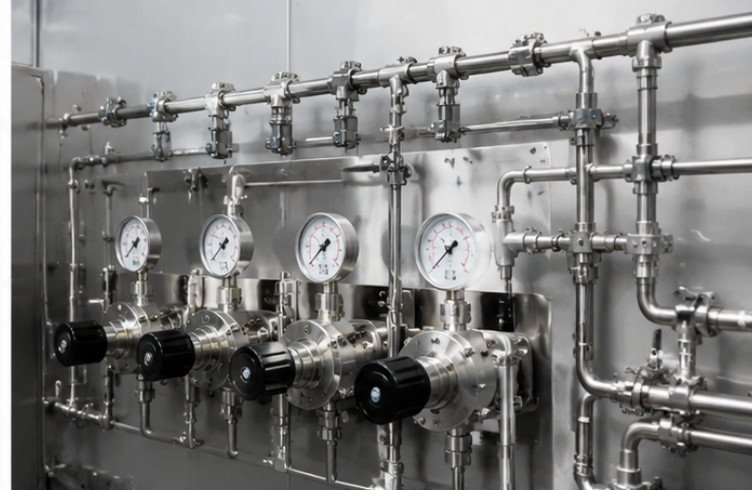

Integrated into specialty gas cabinets, gas panel systems, and high purity gas pipelines for stable and leak-free gas delivery.

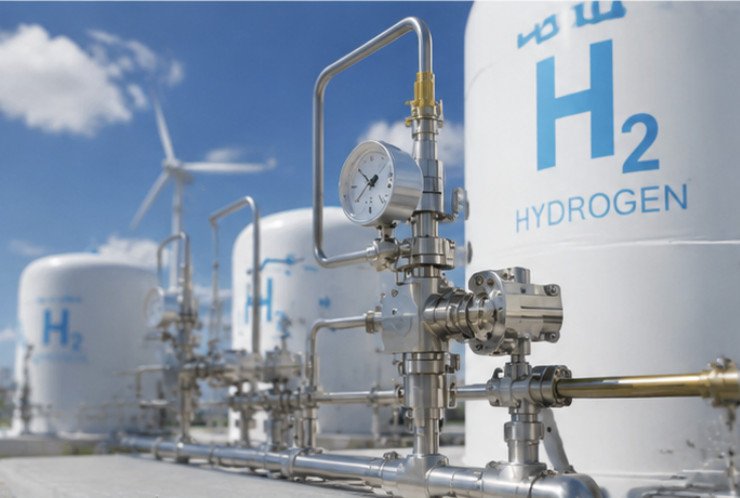

Used in hydrogen fuel systems and clean energy infrastructure requiring high pressure resistance and absolute sealing integrity.
Beyond Fluid has over 15 years of experience supplying stainless steel metal gasket seal fittings to wholesalers, distributors, and large contractors. We offer reliable quality, excellent service, on-time delivery, and competitive prices. Our commitment to advanced technology, precision engineering, and strict quality standards ensures we meet the diverse needs of customers worldwide.
We take pride in producing high-quality high clean fittings and valves. Our comprehensive range of products is designed for optimal performance and durability, with both standard and customized solutions. Serving industries from semiconductors, biotechnology to aerospace, we aim to be your long-term trusted partner to expand your market presence.
When you choose Beyond Fluid, you ensure precision and reliability, backed by our strict Quality Assurance Program.
Beyond Fluid ensures reliability with a 99.99% on-time delivery rate and quick response to urgent orders through stocked materials.
Our robust manufacturing and supply chain enable us to offer competitive prices, helping clients expand their market reach.
Our expert engineers offer design, CAD, and technical support, while our trained sales team ensures fast, efficient 24-hour responses.
Here are a few real most popluar questions from our clients.
Metal gasket face seal fittings are high purity fittings that use a metal gasket to create a leak-tight metal-to-metal seal. They are commonly used in semiconductor, specialty gas, vacuum and ultra high purity gas systems.
Yes, Beyond Fluid's ultra high purity valves and fittings are fully compatible with other big brands, like Swagelok and can be easily integrated into existing systems, offering customers flexibility and ease of use.
VCR-type fittings use a metal gasket face seal, while compression fittings use ferrules to seal around tubing. Metal gasket face seal fittings are often preferred for ultra high purity and critical gas applications.
Beyond Fluid provides VCR-type metal gasket face seal fittings. Compatibility depends on the specific size, thread, gasket and sealing design. Please send your current part number or drawing for confirmation.
They are widely used in semiconductor manufacturing, gas panels, CVD equipment, PVD equipment, photovoltaic systems, specialty gas systems, vacuum systems and laboratory instruments.
Yes. Beyond Fluid can provide standard products and customized fittings based on drawings, samples or application requirements.
