Instrumentation ball valves regulate fluid flow by aligning or blocking the ball's central port with the valve body through handle rotation.
An instrumentation needle valve is a type of valve used to precisely regulate fluid flow in systems where accurate control is essential.
Instrumentation check valves and relief valves are essential for fluid control, ensuring one-way flow and overpressure protection in instrumentation systems.
Pressure regulators control and maintain consistent output pressure in fluid systems, even when input pressure fluctuates.
Block and bleed valves isolate flow and release trapped pressure, ensuring safe maintenance and testing in critical industrial systems.
Instrument valve manifolds are compact assemblies in industrial systems that manage fluid flow for pressure, temperature, and flow measurements.
Engineered for precise, leak-free control in instrumentation,
hydraulic, and pneumatic systems — ensuring performance and
reliability in demanding industrial environments.
From 3,000 psi (207 bar) up to 10,000 psi (1,379 bar)
Overview: Compact quarter-turn valves for precise shut-off in instrumentation and control systems. Suitable for high-pressure, high-purity, and corrosive environments.
Types: 2-Way & 3-Way (on/off or diverting), Angled (90°), Vented (with relief ports), Low Torque (manual or actuated)
Materials: Body – SS316, brass, Monel, Hastelloy; Seals – PTFE, PEEK, Viton, Graphite
Sizes: Tube/Port – 1/8" to 1" (6–25mm);
Ends: Compression, NPT/BSP, weld, flange
Pressure: Standard – up to 3,000 psi (207 bar); High-Pressure – up to 6,000 psi (414 bar)
Applications: Instrumentation, sampling systems, gas panels, oil & gas skids, cleanroom and high-purity processes
Overview: Precision needle valves designed for fine flow control and positive shut-off in instrumentation and sampling lines. Ideal for applications requiring accurate metering, tight sealing, and high-pressure resistance in corrosive or high-purity environments.
Types: Straight, Angle, Union Bonnet, Screwed Bonnet, Integral Bonnet, Soft Seat, and Metal Seat configurations; optional panel-mount design available.
Materials: Body – SS316, brass, Monel, Hastelloy; Stem tip – stainless steel, PCTFE, or non-rotating design; Seals – PTFE, PEEK, Graphite
Sizes: Tube/Port – 1/8″ to 1″ (6–25mm)
Ends: Compression, NPT/BSP, welded, or flanged connections
Pressure: Standard – up to 6,000 psi (414 bar); High-Pressure – up to 10,000 psi (690 bar) and above for special high-pressure series
Applications: Precise control in pressure transmitters, sampling systems, purge lines, gas and fluid panels, analyzers, and offshore instrumentation where vibration resistance and leak-tight performance are critical
Overview: Check valves ensure one-way flow and prevent backflow; filters protect downstream components by removing particles from fluids or gases. Both are essential for system integrity in instrumentation and process lines.
Types: Inline, Angle, Dual Plate, Spring-loaded (check valves); Inline and Tee-type (filters); Cleanable and replaceable element options available
Materials: Body – SS316, brass, Monel, Hastelloy; Seals – FKM, EPDM, PTFE; Filter Elements – Stainless steel mesh, sintered metal
Sizes: Tube/Port – 1/8″ to 1″ (6–25mm)
Ends: Compression, NPT/BSP, weld
Pressure: Standard – up to 6,000 psi (414 bar); Filter pressure drop depends on element rating and media
Applications: Gas and liquid lines, analyzers, sampling systems, hydraulic loops, chemical injection, and instrumentation panels
Overview: Proportional relief valves gradually open as system pressure approaches the set point, offering smooth overpressure protection and improved system stability.
Types: Inline, angle, low-pressure and high-pressure models; available with fixed or adjustable set points
Materials: Body – SS316, brass, Monel, Hastelloy; Seals – PTFE, PEEK, FKM, EPDM
Sizes: Tube/Port – 1/8″ to 1″ (6–25mm)
Ends: Compression, NPT/BSP, weld, flange
Pressure: Settable range typically from 100 psi (7 bar) up to 6,000 psi (414 bar)
Applications: Instrument gas panels, calibration systems, pressure regulators, cylinder supply lines, and analyzer protection

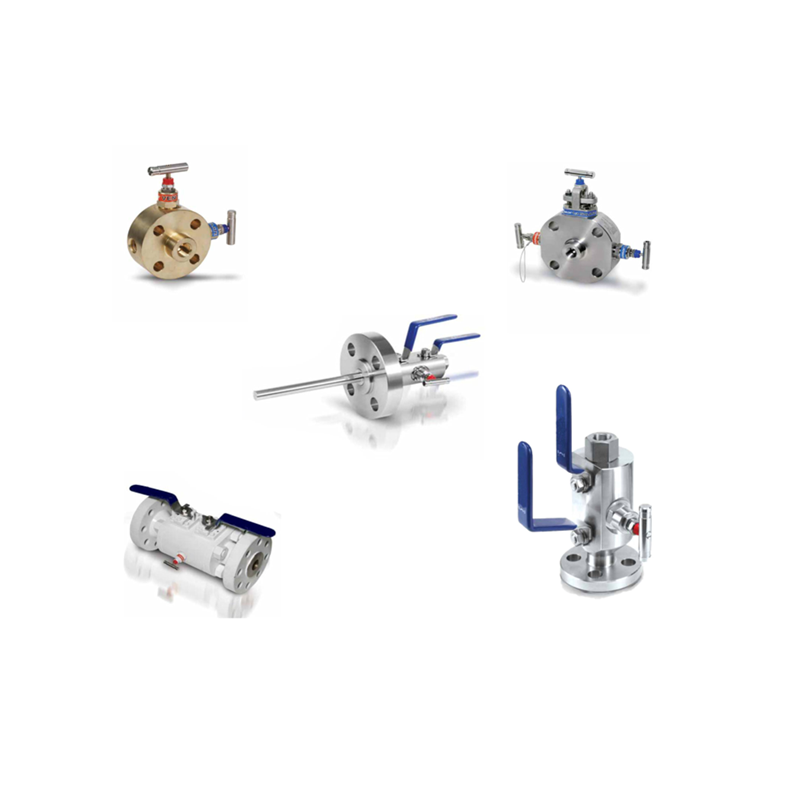

Overview: Block and bleed valves combine isolation (block) and venting (bleed) functions in a single unit, allowing safe maintenance, calibration, or pressure removal without disrupting system flow.
Types: Single block and bleed, double block and bleed, needle/ball/combination configurations; panel-mount and compact types available
Materials: Body – SS316, brass, Monel, Hastelloy; Seals – PTFE, PEEK, Graphite, Viton
Sizes: Tube/Port – 1/8″ to 1″ (6–25mm)
Ends: Compression, NPT/BSP, weld, flange
Pressure: Standard – up to 6,000 psi (414 bar); high-pressure options available
Applications: Pressure transmitter isolation, instrument calibration, venting trapped pressure, oil & gas skids, chemical injection lines
Overview: Multi-valve units for isolating, equalizing, and venting pressure in instrumentation systems, commonly used with pressure or DP transmitters.
Types: 2-valve (block & vent), 3-valve (block, equalize, vent), 5-valve (dual block, equalize, dual vent); inline or remote/direct mount
Materials: Body – SS316, brass, Monel, Hastelloy; Seals – PTFE, graphite, PEEK
Sizes: 1/4″ to 1/2″ (6–12 mm)
Ends: Compression, NPT/BSP, flange
Pressure: Up to 6,000 psi (414 bar)
Applications: Pressure measurement systems, analyzers, oil & gas skids, chemical plants, industrial automation
At Beyond Fluid, we take great care in manufacturing our instrument valves. From the first mold to the final packaging, every step is closely monitored to ensure strict quality control. This meticulous process guarantees that our products meet the highest standards of excellence.
At Beyond Fluid, we pride ourselves on our comprehensive expertise in engineering and designing instrumentation valves. From the initial concept to the final product, our team is equipped to transform your ideas into tangible, high-quality fluid and control solutions. Our commitment to innovation ensures that we deliver not just products, but value-driven solutions tailored to your needs.
Beyond Fluid has over 15 years of experience supplying stainless steel instrumentation valves and fittings to wholesalers, distributors, and large contractors. We offer reliable quality, excellent service, on-time delivery, and competitive prices. Our commitment to advanced technology, precision engineering, and strict quality standards ensures we meet the diverse needs of customers worldwide.
We take pride in producing high-quality instrumentation valves and fittings. Our comprehensive range of products is designed for optimal performance and durability, with both standard and customized solutions. Serving industries from oil and gas to pharmaceuticals, we aim to be your long-term trusted partner to expand your market presence.
When you choose Beyond Fluid, you ensure precision and reliability, backed by our strict Quality Assurance Program.
Beyond Fluid ensures reliability with a 99.99% on-time delivery rate and quick response to urgent orders through stocked materials.
Our robust manufacturing and supply chain enable us to offer competitive prices, helping clients expand their market reach.
Our expert engineers offer design, CAD, and technical support, while our trained sales team ensures fast, efficient 24-hour responses.
“We’re literally satisfied with Beyond Fluid’ always on-time delivery and exceptional handling of requests. Their commitment to timely service is evident and consistently reliable. Their swift response and guaranteed on-time delivery make them my preferred choice.”
“We can always count on Beyond Fluid’s quality. During a 2018 visit, their advanced facilities and stringent quality controls made a lasting impression on us. Their timely responses to requests for drawings or technical support further solidify my trust. We really love to place our orders to those suppliers like Beyond Fluid.”
Here are a few real most popluar questions from our clients.
Yes, Beyond Fluid's instrument valves are fully compatible with other big brands, like Swagelok and can be easily integrated into existing systems, offering customers flexibility and ease of use.
Our quality control process is both rigorous and comprehensive. Every valve device undergoes multiple stages of inspection, including thorough raw material testing, meticulous production line monitoring, and detailed final product verification. We strictly adhere to international quality standards, ensuring that each device meets the highest quality benchmarks. This commitment to excellence guarantees reliability and performance in every product we deliver.
We use premium materials and advanced manufacturing techniques, ensuring exceptional durability and performance. Our devices undergo rigorous testing and simulation to withstand diverse working conditions. Additionally, we continuously improve and optimize our products based on customer feedback, demonstrating our commitment to meeting evolving industry needs and exceeding client expectations.
Yes, we provide customization options to tailor valves, fittings, and tubing to meet the unique requirements of each customer's application, ensuring optimal performance and efficiency.
Sure, we provide OEM services for several leading global brands in instrument valve and fittings, significantly reducing their production costs and helping them gain greater market share.
Sure, we can provide samples of instrument valves or fittings for evaluation firstly.
Thanks to our excellent supply chain management, and more than 15 years of experience in production, most of our wholesalers and distributors are happy with our prices.
Our typical payment term is 30% T/T in advance, balance payment against BL copy. But for serious buyers/companies, we’re open to discussing more flexible payment terms, such as a 30% deposit with the balance due within 30 days after shipment. We can work out the details later.
